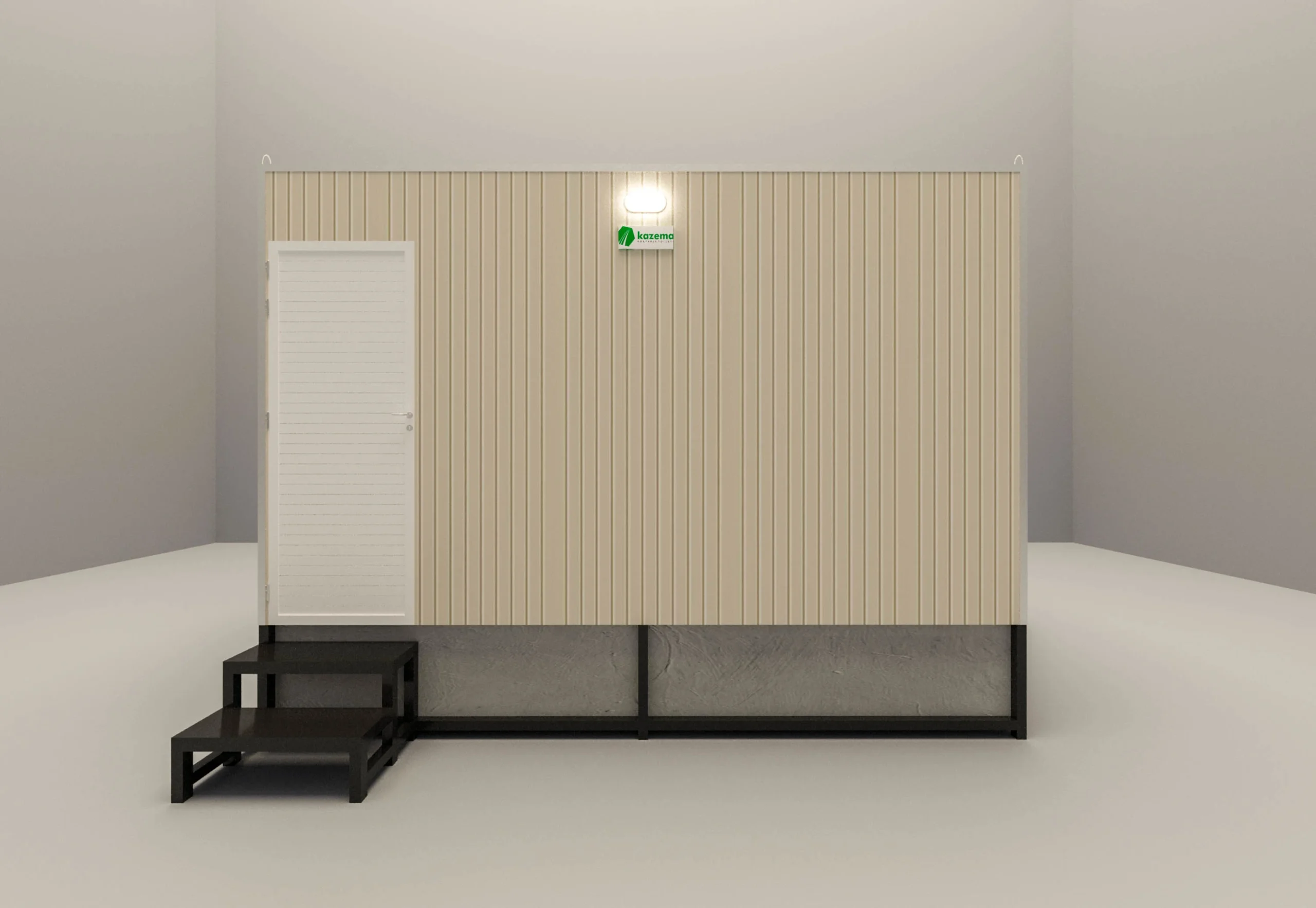

Custom Four-Cabin Modular Prefabricated Toilets

This prefabricated four-cabin modular toilet is designed for durability, hygiene, and convenience, making it ideal for construction sites, events, and temporary facilities across the UAE.

Construction & Material:

• Material: Sandwich panel and fire-rated cement board

• Walls: 6mm thick cement board finished with weatherproof emulsion paint; internal walls finished with 6mm cement board and super emulsion paint

• Wall Insulation: 50mm thick rock-wool insulation (30kg/m³ density)

• Roof: 50mm polyurethane Aluminum/GI Sandwich panel, flat exterior and interior

• Dimensions: 4m L × 2.4m W × 3m H, providing four fully functional cabins in a single unit

• Flooring: GRP flooring over 18mm marine plywood for enhanced durability and easy cleaning

Toilet Area Features:

• Four separate W/C cabins, each with Western or Arabic style seat, spray hose, and flushing system

• 1 tissue roll dispenser per cabin

• Common area includes 2 washbasins and 2 urinals with partitions

Electrical Features:

• LED light for bright interior illumination

• 1 exhaust fan per cabin for proper ventilation

• 16 AMP power inlet and 1 switch

Plumbing & Water Management:

• 1.5″ air vent pipe, 4″ sewer outlet, 3/4″ fresh water inlet, and gate valve

• Water tank: 200-gallon GRP/PVC with automatic pressure pump control, located beside the toilet

• Waste tank: 650-gallon GRP tank with 3″ gate valve and 4″ sewage pipe, supported by a built-in steel-mounted frame underneath

Doors & Accessibility:

• Main entrance: Sandwich panel door

• MS steps for easy access

• Internal cabin doors: Aluminum/GI sandwich panel doors

This four-cabin modular prefabricated toilet combines modern amenities with robust construction, offering a safe, hygienic, and user-friendly solution for multiple users in temporary or semi-permanent settings anywhere in the UAE.
